Flat / Oval Wire Wound Power Resistors –

ZZR, ZNR, ZQR and ZQN

• ZZR - Oval / Flat WireWound Resistors : 40W - 300W
• ZNR - Oval / Flat Low Inductance Wire Wound Resistors : 40W - 300W
• ZQR - Oval / Flat Waved Ribbon Wire Wound resistors : 40W - 500W
• ZQN - Oval / Flat Low Inductance Waved Ribbon Wire Wound resistors up to 500W
• Low Inductive and Waved Ribbon type are available
• Resistance is manufactured according to customer's application need
• Support pulse current applications
• Support Precision Resistance Tolerance requirement
• Support low and high ohmic resistance range

• In case very small resistance is needed, please tell working Voltage and Duty Cycle. Different Voltage can cause different current. In turn different raw materials and production process is needed to withstand the high current and heat generated.

• Mounting fixture is available, allow stacking into compact unit
• Compact sizes
• Rated power wattage, resistance and resistor size not listed below, can be made according to customer's need
• Support small quantity order and accept Credit Card
• Prompt Delivery, within 2 - 9 days! e-mail us for pricing.

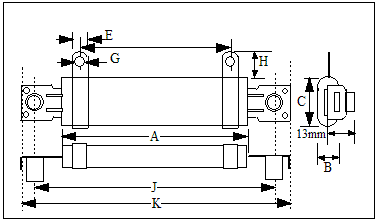

ZZR-F - Oval / Flat Wire Wound Resistors

Power Watt	Dimensions in mm +/-1mm								Resistance Range ohm
	A	B	C	E	G	H	J	K
40W	50	9	27	6.5	4.1	12	70	103	0.1 - 4k
50W	90	9	27	6.5	4.1	12	110	123	0.1 - 4k
60W	90	9	27	6.5	4.1	12	110	123	0.1 - 4k
80W	120	9	27	6.5	4.1	12	140	153	0.1 - 4k
100W	150	9	27	6.5	4.1	12	170	183	0.1 - 4k
120W	160	9	27	6.5	4.1	12	180	193	0.1 - 4k
150W	185	11	27	6.5	4.1	12	205	218	0.1 - 4k
200W	210	11	27 / 35	9	5.2	13	230	243	0.1 - 4k
250W	254	11	35	9	5.2	13	274	287	0.1 - 4k
300W	300	11	35	9	5.2	13	320	333	0.1 - 4k
