Wire Wound Resistors -
KNP, NKNP, KNT, NKNT series
|
-
Wire
Wound Resistors with different packaging,
preformed, Bulk pack, Tape in Reel and Tape in Box for
options.
-

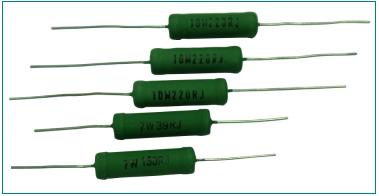

KNP : Wire Wound Resistors
with copper lead wire at the resistor
two ends
-
KNT : Wire Wound Resistors
with supportive terminal at the
resistor two ends
- good for high pulse current and mounting
-
Wire
Wound Resistors Power range : 1/2W - 30W
-
Support
Bulk, Tape in Box and Tape in Reel packaging
-
Support
pulse current requirements
-
Support high resistance
values
-
low inductance version is
available : NKNP / NKNT
-
Precision Resistance
Tolerance : +/-0.1% +/-0.5% +/-1% +/-5% +/-10%
-
Support
resistor with wattage,
resistance and resistor size not listed
below.
-
We
support Wire Wound Resistor for a wide variety of
industrial applications. Different applications can have
a very different resistor electrical and mechanical
profile.
-
Prompt Delivery,
within 10 - 15 days. Accept
PayPal.
e-mail us for
pricing.

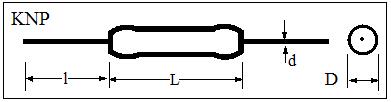

KNP and
NKNP - Wire Wound Power Resistors
| Power
range |
KNP & NKNP dimension |
Resistance range ohm |
Dielectric Voltage |
|
D+/-0.5mm |
L+/-1mm |
lead length (l) mm
+/-3mm |
lead wire diameter d mm |
KNP |
NKNP |
|
1/2W |
3.5 |
9 |
25 |
0.65 |
0.1 - 82 |
0.05 - 41 |
300V |
|
1W |
4.5 |
10.5 |
25 |
0.65 |
0.2 - 100 |
0.05 - 50 |
300V |
|
1Ws |
3.5 |
9 |
25 |
0.65 |
0.1 - 82 |
0.05 - 41 |
300V |
|
2W |
5 |
15 |
25 |
0.78 |
0.1 - 220 |
0.05 - 110 |
350V |
|
2Ws |
4.5 |
10.5 |
25 |
0.78 |
0.1 - 100 |
0.05 - 50 |
300V |
|
3W |
6 |
17 |
25 |
0.78 |
0.1 - 510 |
0.05 - 255 |
400V |
|
3Ws |
5 |
15 |
25 |
0.78 |
0.1 - 220 |
0.05 - 110 |
350V |
|
5W |
8 |
24 |
25 |
0.78 |
0.1 - 1.5k |
0.05 - 750 |
500V |
|
5Ws |
6 |
17 |
25 |
0.78 |
0.1 - 510 |
0.05 - 255 |
400V |
|
7W |
8 |
31 |
25 |
0.78 |
0.1 - 3k |
0.05 - 1.5k |
500V |
|
7Ws |
8 |
24 |
25 |
0.78 |
0.1 - 1.5k |
0.05 - 750 |
500V |
|
8W |
8 |
31 |
25 |
0.78 |
0.1 - 3k |
0.05 - 1.5k |
500V |
|
8Ws |
8 |
24 |
25 |
0.78 |
0.1 - 1.5k |
0.05 - 750 |
500V |
|
10W |
8 |
41 |
25 |
0.78 |
0.1 - 8k |
0.05 - 4k |
500V |
|
10Ws |
8 |
31 |
25 |
0.78 |
0.1 - 3k |
0.05 - 1.5k |
500V |
|
15W |
8 |
52 |
25 |
0.78 |
0.1 - 10k |
0.05 - 5k |
500V |
|
20W |
8 |
61 |
25 |
0.78 |
0.1 - 12k |
0.05 - 6k |
500V |
|
25W |
8 |
61 |
25 |
0.78 |
0.1 - 12k |
0.05 - 6k |
500V |
|
30W |
8 |
70 |
25 |
0.78 |
0.1 - 15k |
0.05 - 7.5k |
500V |

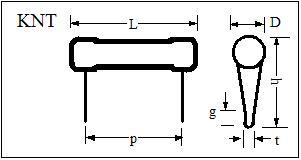

KNT and
NKNT - Wire Wound Power Resistors
with supportive Terminals
|
Power range |
KNT & NKNT dimension
|
Resistance range ohm |
Dielectric Voltage |
|
D+/-0.1mm |
L+/-1mm |
height h mm |
pitch p mm |
g in mm |
t in mm |
KNT |
NKNT |
|
2.5W |
5 |
19 |
10 |
10 |
4 |
1 |
0.1 - 220 |
0.05 - 110 |
300V |
|
4W |
5 |
24 |
10 |
15 |
4 |
1 |
0.1 - 220 |
0.05 - 110 |
400V |
|
5W |
8 |
24 |
23 |
14 |
4.5 |
3 |
0.1 - 1.5k |
0.05 - 750 |
500V |
|
6W |
8 |
24 |
23 |
14 |
4.5 |
3 |
0.1 - 1.5k |
0.05 - 750 |
500V |
|
7W |
8 |
31 |
23 |
22 |
4.5 |
3 |
0.1 - 3k |
0.05 - 1.5k |
500V |
|
8W |
8 |
31 |
23 |
22 |
4.5 |
3 |
0.1 - 3k |
0.05 - 1.5k |
500V |
|
10W |
8 |
41 |
23 |
32 |
4.5 |
3 |
0.1 - 8k |
0.05 - 4k |
500V |
|
15W |
8 |
52 |
23 |
42 |
4.5 |
3 |
0.1 - 10k |
0.05 - 5k |
500V |
|
20W |
8 |
61 |
23 |
52 |
4.5 |
3 |
0.1 - 12k |
0.05 - 6k |
500V |
|
25W |
8 |
61 |
23 |
52 |
4.5 |
3 |
0.1 - 12k |
0.05 - 6k |
500V |
|
30W |
8 |
70 |
23 |
62 |
4.5 |
3 |
0.1 - 15k |
0.05 - 7.5k |
500V |
|
|
|
|
